◎Properties
Excellent anti-corrsion
◎ Applications

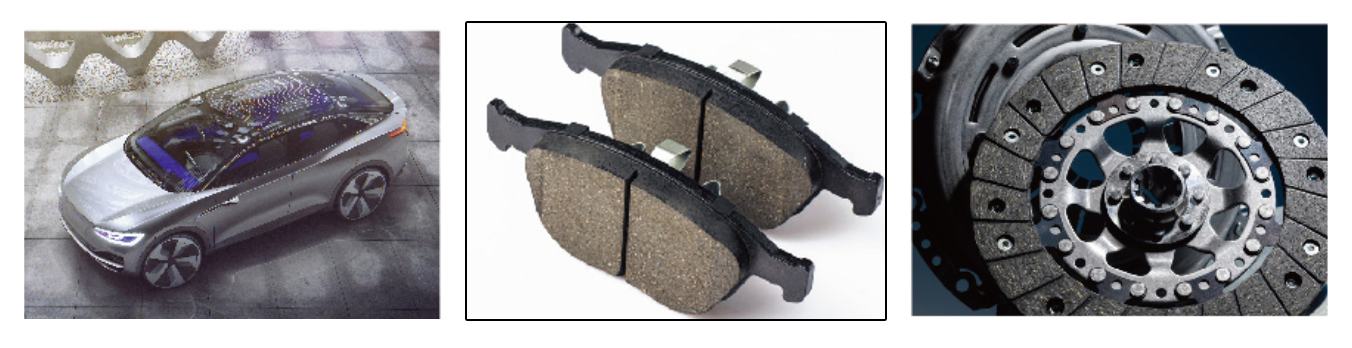

Raw friction material for:
Disc brake pads drum brake linings other friction products
Grade | Tap Volume(ml/g) | Oil Percentage(%) | Ro-tap Screen Analysis(%Retained) | |||||
| 14 | 20 | 40 | 70 | 100 | PAN | |||
| SS-1090 | 0.8-1.0 | ≤0.2 | 0 | 0-2 | 1-10 | 10-20 | 5-15 | 60-80 |
| SS-1110 | 0.9-1.2 | ≤0.2 | 0 | 0-2 | 1-12 | 10-25 | 5-15 | 55-75 |
| SS-1140 | 1.3-1.6 | ≤0.2 | 0-1 | 0-5 | 0-15 | 12-27 | 5-15 | 50-70 |
| SS-1160C | 1.45-2.05 | ≤0.2 | --- | --- | 6-25 | --- | 26-51 | 27-65 |
| SS-2080 | 0.8-1.1 | ≤0.1 | 0-1 | 0-5 | 5-15 | 10-30 | 5-25 | 45-65 |
| SS-2080C | 0.8-1.1 | ≤0.1 | 0-1 | 0-5 | 5-15 | 15-30 | 5-25 | 45-65 |
| SS-2140 | 1.35-1.45 | ≤0.1 | --- | --- | 20-35 | --- | 30-40 | ≤42 |
| SS-3090 | 0.8-1.1 | ≤0.2 | 0-1 | 0-5 | 5-25 | 15-30 | 5-25 | 30-60 |
| SS-3110 | 1.0-1.3 | ≤0.3 | 0-1 | 1-5 | 5-25 | 15-30 | 5-25 | 30-60 |
| Custom specifications can be met for unique applications at the customers request | ||||||||
◎ Grade and specifications
Technical specifications of the representative products
◎ Package
By multi-wall paper bag; net weight per bag: 50lb or 25 kg
Pallet dimension: 1200 mm( L)x1000 mm(W)
Can be customized according to customer requirements
◎Properties
Excellent anti-corrsion
◎ Applications
Raw friction material for:
Disc brake pads drum brake linings other friction products
Grade | Tap Volume(ml/g) | Oil Percentage(%) | Ro-tap Screen Analysis(%Retained) | |||||
| 14 | 20 | 40 | 70 | 100 | PAN | |||
| SS-1090 | 0.8-1.0 | ≤0.2 | 0 | 0-2 | 1-10 | 10-20 | 5-15 | 60-80 |
| SS-1110 | 0.9-1.2 | ≤0.2 | 0 | 0-2 | 1-12 | 10-25 | 5-15 | 55-75 |
| SS-1140 | 1.3-1.6 | ≤0.2 | 0-1 | 0-5 | 0-15 | 12-27 | 5-15 | 50-70 |
| SS-1160C | 1.45-2.05 | ≤0.2 | --- | --- | 6-25 | --- | 26-51 | 27-65 |
| SS-2080 | 0.8-1.1 | ≤0.1 | 0-1 | 0-5 | 5-15 | 10-30 | 5-25 | 45-65 |
| SS-2080C | 0.8-1.1 | ≤0.1 | 0-1 | 0-5 | 5-15 | 15-30 | 5-25 | 45-65 |
| SS-2140 | 1.35-1.45 | ≤0.1 | --- | --- | 20-35 | --- | 30-40 | ≤42 |
| SS-3090 | 0.8-1.1 | ≤0.2 | 0-1 | 0-5 | 5-25 | 15-30 | 5-25 | 30-60 |
| SS-3110 | 1.0-1.3 | ≤0.3 | 0-1 | 1-5 | 5-25 | 15-30 | 5-25 | 30-60 |
| Custom specifications can be met for unique applications at the customers request | ||||||||
◎ Grade and specifications
Technical specifications of the representative products
◎ Package
By multi-wall paper bag; net weight per bag: 50lb or 25 kg
Pallet dimension: 1200 mm( L)x1000 mm(W)
Can be customized according to customer requirements
